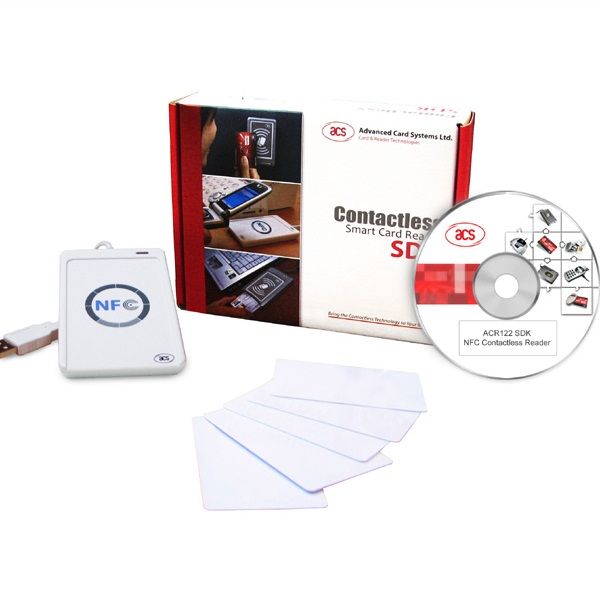

ACS ACR122U NFC Contactless kaartlezer SDK (USB)

De ACR122 is een PC-linked Contacless Smart Card Reader / Writer ontwikkeld op 13.56MHz Contactloos (Rfid)-technologie en volgde het ISO/IEC18092 standaard voor Near Field Communication (NFC), het ondersteunen van niet alleen de Rfid? ISO 14443 A-en B-kaarten, maar ook en FeliCa NFC contactloze technologieën.

ACR122 NFC Reader specs:

• CCID-compliant
• PC/SC-compliant
• Read/write speed up to 424 kbps
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Support ISO 14443 Type A and B, Rfid®, FeliCa and all 4 types of NFC (ISO/IEC 18092) tags
• Support all 3 modes of NFC: reader, card emulation and peer-to-peer modes
• Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented
• USB Full Speed (12 Mbps)
• Bi-color LED
• Compact size: 98 mm (L) x 65 mm (W) x 12.8 mm (H)
• Light Weight: 70 g
• Compliance with CE, FCC, VCCI and RoHS Â


ACR122T NFC Contactless Smart Card Reader

• CCID-compliant
• Read/write speed up to 424 kbps
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Support ISO 14443 Type A and B, Rfid®, FeliCa and all 4 types of NFC (ISO/IEC 18092) tags
• Support all 3 modes of NFC: reader, card emulation and peer-to-peer modes
• Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented
• Extractable USB plug
• USB Full Speed (12 Mbps)
• Bi-color LED
• Compact size: 75 mm (L) x 30 mm (W) x 9.9 mm (H)
• Light Weight: 15 g
• Compliance with CE, FCC, VCCI and RoHS
• PC/SC-compliant

Test Cards

• 5 x Rfid 1K Contactless Cards

CD-ROM

• Software drivers

• Tools and Utilities

  • ACR122U Tool – lets you to perform reader and card-related commands
  • QuickView – checks for proper driver installation
  • ACS Easy Key – allows you to change Rfid security settings
  • ACR122U Scripting Tool – allows you to send a sequence of commands to contactless cards

• Sample codes

  • Demonstrate basic commands used to communicate with the cards and readers
  • Available in the following programming languages: Java, Delphi 7, Visual Basic 6, Visual C++ 6, Visual C++ 2005 (x64), Visual C# 2005 and Visual Basic .Net 2005

• Demo Applications

  • NFC Peer-to-Peer Demo
  • Visitor Management System Demo

• Reference Manuals

• Operating System Support

  • Windows 98, ME, 2000, XP, Vista
