Product Description (for current configuration):

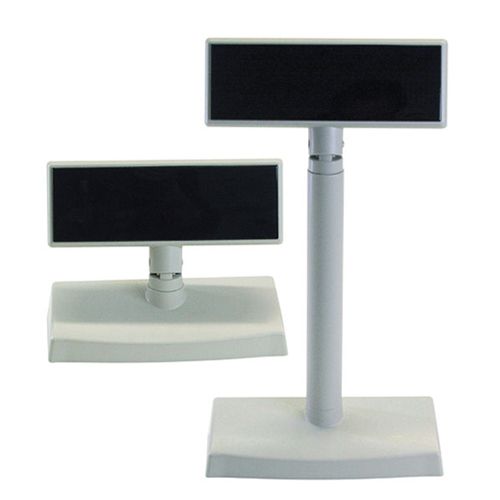

VFD200 - VFD Customerdisplay, USB and RS232, dark grey
General Product Series Description (can vary to current configuration):
The BYPOS VFD200 Customer Display is a display based on VFD (Vacuum Fluorescent Display) technology with a support for 40 characters (20 columns, 2 lines). Its combo interfaces includes USB as well as RS232 serial. The VFD200 can therefore be attached to a huge number of point-of-sale terminals without changing the interface or reassembling the device.
The VFD200 supports every common command mode and a huge number of languages including German and the European Region.
- Display Method: Vacuum Fluorescent Display (Blue-green)
- Number of characters: 40 (20 columns x 2 lines)
- Brightness: 500 - 1000 cd/m2
- Character font: 5 x 7 dot matrix, cursor
- Character type: 95 Alphanumeric, 32 International Characters
- Character size: 5.5 (H) x 9.2 (W) mm
- Dot Size (X x Y): 0.86 x 1.2 mm
- Panel Dimension: 220 (W) x 50 (D) x87 (H) mm
- Pole Dimension Per support: 130 (L) x 34.5 (Dia) mm
- Base Dimension: 217 (W) x 106 (D) x 33 (H) mm
- Viewing Angle: Max. 90
- Horizontal Rotation: Max. 355
- Weight: Approx. 980 grams
