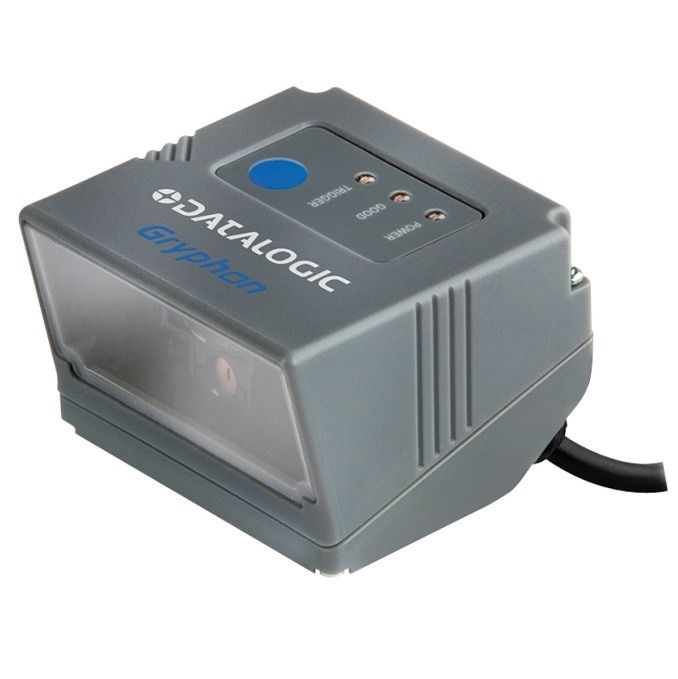

Datalogic Gryphon GFS4100 vaste montage

Met behulp van geavanceerde imaging technologie, de Gryphon GFS4100 vaste mount bar code-lezer biedt een compleet self-contained oplossing voor OEM gebruik in self-service kiosks, prijs verificateurs, ticket lezers, document handling, en medische toepassingen in het laboratorium, alsmede automaten en andere geautomatiseerde apparatuur.

Ontworpen voor eenvoudige integratie, de Gryphon I GFS4100 reader biedt een eenvoudige 'plug-and-play' oplossing voor systeemontwerpers. Gebouwd met behulp van high-impact hars herhaalde reinigingen weerstaan ​​met oplosmiddelen en desinfecterende oplossingen, de verzegelde behuizing voldoet aan de industriële normen tegen water en deeltjes te verstrekken aan betrouwbare en betrouwbaar scanprestaties.

Decoding Capability

• 1D / Linear Codes
  • Autodiscriminates all standard 1D codes including GS1 DataBarâ„¢ linear codes

Electrical

• Current
  • Operating (Typical)
    • 390 mA
  • Standby/Idle (Typical)
    • GFS4170
      < 2.5 mA
• Input Voltage
  • 5 VDC +/- 5%

Environmental

• Ambient Light
  • 0 - 100,000 lux
• Drop Resistance
  • Withstands repeated drops from 0.76 m / 2.50 ft onto a concrete surface
• ESD Protection (Air Discharge)
  • 16 kV
• Humidity (Non-Condensing)
  • 95%
• Particulate and Water Sealing
  • IP54
• Temperature
  • Operating
    • 0 to 50 °C / 32 to 122 °F
  • Storage/Transport
    • -25 to 50 °C / -13 to 122 °F

Interfaces

• RS-232
• USB

Physical Characteristics

• Colors Available
  • Grey
  • Other colors and custom logo options are available for minimum quantity purchase.
• Dimensions
  • 3.9 x 5.7 x 5.8 cm / 1.5 x 2.2 x 2.3 in
• Weight
  • 170.0 g / 6.0 oz (including a 2.0 m / 6.6 ft RS-232 cable)

Reading Performance

• Imager Sensor
  • CCD Solid State
• Light Source
  • Illumination
    • Dual LED Array 630 - 670 nm
• Print Contrast Ratio (Minimum)
  • 15%
• Read Rate (Maximum)
  • 320 reads/sec.
• Reading Angle
  • Pitch
    • +/- 65°
  • Roll (Tilt)
    • +/- 35°
  • Skew (Yaw)
    • +/- 65°
• Reading Indicators
  • Beeper
  • Datalogic 'Green Spot' Good Read Feedback
  • Good Read LED
• Resolution (Maximum)
  • 0.076 mm / 3 mils

Reading Ranges - Typical Depth of Field

• Minimum distance determined by symbol length and scan angle.
• Printing resolution, contrast, and ambient light dependent.
• 5 mils
  • 5.0 to 16.0 cm / 2.0 to 6.3 in
• 8 mils
  • 3.0 to 27.0 cm / 1.2 to 10.6 in
• 10 mils
  • 1.5 to 30.0 cm / 0.6 to 11.8 in
• 13 mils
  • 3.0 to 40.0 cm / 1.2 to 15.7 in
• 20 mils
  • up to 60.0 cm / up to 23.6 in

Safety & Regulatory

• Agency Approvals
  • The product meets necessary safety and regulatory approvals for its intended use.
  • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
  • Complies to China RoHS
  • Complies to EU RoHS
• LED Classification
  • IEC 60825-1 Class 1 LED Product

Utilities

• Datalogic Aladdinâ„¢
  • Datalogic Aladdin configuration program is available for download at no charge
• OPOS / JavaPOS
  • JavaPOS Utilities are available for download at no charge
  • OPOS Utilities are available for download at no charge
• Remote Host Download
  • Lowers service costs and improves operations

Warranty

• 18-Month Factory Warranty
